Cámara FPV 5.8G 40CH 900TVL...

Cámara FPV 5.8G 40CH 900TVL 25MW/200MW Switchable VTX 1/3 Cmos

sku457775
Últimas unidades en stock
49,90 €
Impuestos incluidos
Cámara FPV 5.8G 40CH 900TVL 25MW/200MW Switchable VTX 1/3 Cmos





Sensor: 1/3 "CMOS
Lens: 900TVL Lens
Angle: 110 ° FOV horizontal viewing angle of 140 ° DFOV diagonal perspective 68 ° FOVvertical viewing angle
Format: NTSC / PAL (switchable)
Resolution: PAL: 960x576 NTSC: 960x480
Power consumption: 100mA @ 12V
Power: 3-26V (Connect the booster module to support the voltage bellow 4.8V)
Lens Mirror Diameter: F=2.9mm f=6.72mm
Support video format: NTSC / PAL
Output Impedance: Antenna 50Ω , Signal 75Ω
Output signal strength: 13±1dbmdBm or 23±1dbmdBm
Output Power: 25mW or 200mw (Switchable)
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3-26V (Connect the booster module to support the voltage bellow 4.8V)
Current: 100mA
Audio carrier: 6.5MHz
Weight: 9.9g

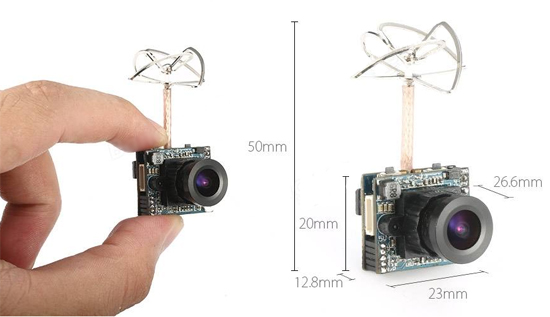

Size: 23*20*12.8mm (without antenna)



           Frequency Table
Frequency Band A 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band B 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band C 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band D 5658 5695 5732 5769 5806 5843 5880 5917
Frequency Band E 5733 5752 5771 5790 5809 5828 5847 5866
